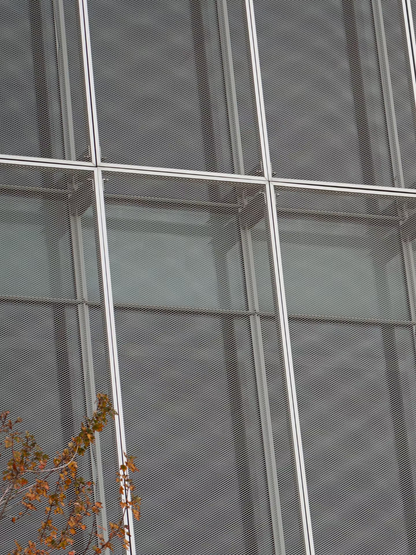

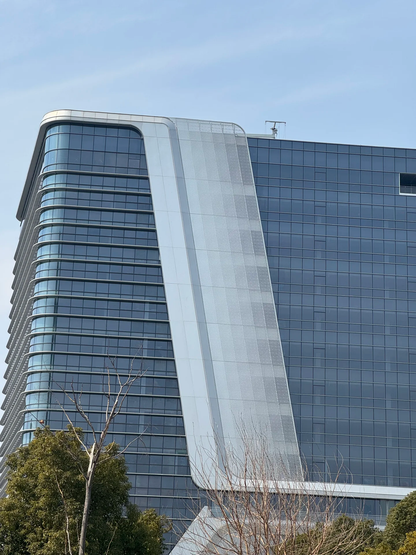

Expanded Panel For Cladding

Expanded metal panels offer unique advantages that make them ideal for architectural cladding applications requiring strength, ventilation, and cost-effectiveness:

Structural Advantages:

• Superior strength-to-weight ratio - up to 70% weight reduction with maintained structural integrity
• Excellent load distribution through interconnected diamond pattern
• Impact resistance - expanded structure absorbs and distributes forces
• Dimensional stability - minimal thermal expansion stress
• Fatigue resistance - flexible structure handles dynamic loads

Functional Benefits:

• Outstanding ventilation - up to 80% open area for maximum airflow
• Security with visibility - restricts access while maintaining sight lines
• Self-cleaning properties - open structure prevents debris accumulation
• Acoustic transparency - allows sound transmission when required
• Lightning and EMI protection - conductive metal mesh properties

Economic Advantages:

• Material efficiency - expanded process uses 100% of original sheet
• Reduced transportation costs - lightweight panels lower shipping expenses
• Easy installation - standard mounting systems and lightweight handling
• Low maintenance - durable construction requires minimal upkeep
• Cost-effective manufacturing - efficient production process

Design Flexibility:

• Multiple mesh patterns - from fine security to coarse architectural
• Various orientations - diamond pattern can be rotated for different effects
• Custom sizing - panels can be fabricated to specific dimensions
• Finish options - wide range of coatings and surface treatments
• Integration capability - combines well with other cladding materials

Environmental Benefits:

• High recycled content - made from recycled metal materials
• 100% recyclable - panels can be fully recycled at end of life
• Energy efficient - natural ventilation reduces HVAC requirements
• Sustainable manufacturing - minimal waste production process

Selecting the optimal expanded metal mesh pattern requires balancing functional requirements, aesthetic goals, and structural performance:

Functional Requirements Analysis:

Ventilation Needs:

• High airflow (70-80% open area): Parking garages, equipment screening - use Heavy Duty or Architectural mesh
• Moderate airflow (60-70% open area): General building ventilation - use Standard mesh
• Controlled airflow (45-55% open area): Security applications - use Fine mesh

Security Requirements:

• Maximum security: Fine mesh (6×12mm SWD) prevents small object penetration
• Standard security: Standard mesh (12×25mm SWD) balances security and cost
• Visual security: Larger mesh maintains visibility while providing barrier

Structural Considerations:

• High wind loads: Smaller mesh patterns provide better structural efficiency
• Large spans: Heavy-duty mesh with wider strands for maximum strength
• Seismic zones: Consider dynamic loading and flexibility requirements

Aesthetic Preferences:Visual Impact:

• Fine texture: Small mesh patterns create subtle surface texture
• Bold pattern: Large mesh creates dramatic shadow effects
• Directional emphasis: Mesh orientation affects visual flow

Light and Shadow:

• Dynamic effects: Larger openings create more pronounced shadow patterns
• Consistent shading: Smaller, uniform patterns provide even light filtration
• Seasonal variation: Consider sun angle changes throughout the year

Material Selection Guidelines:

Aluminum Expanded Metal:

• Best for: Lightweight applications, corrosive environments
• Mesh range: All patterns available
• Finishes: Anodized, powder coat, PVDF options

Galvanized Steel:

• Best for: High-strength requirements, cost-sensitive projects
• Mesh range: Standard to heavy-duty patterns
• Finishes: Galvanized, painted, powder coated

Stainless Steel:

• Best for: Premium applications, extreme environments
• Mesh range: Fine to standard patterns typically
• Finishes: Mill, brushed, mirror options

Application-Specific Recommendations:

• Parking structures: 20×40mm or 25×50mm mesh, 65-75% open area
• Equipment screening: 25×50mm or larger, 70-80% open area
• Security barriers: 6×12mm to 12×25mm mesh, 45-65% open area
• Architectural features: Custom patterns based on design intent

Expanded metal panels typically offer excellent value compared to other cladding materials, with significant cost advantages in many applications:

Initial Cost Comparison:

Expanded Metal Advantages:

• Material efficiency - 100% of original sheet metal is used (no waste)
• Lightweight construction reduces shipping and handling costs
• Simple manufacturing process keeps production costs low
• Standard tooling available for common mesh patterns
• Bulk availability from multiple suppliers ensures competitive pricing

Cost Factors:

• Base material type: Aluminum > Stainless Steel > Galvanized Steel > Carbon Steel
• Mesh pattern complexity: Standard patterns most economical
• Panel thickness: Heavier gauges cost more per square meter
• Surface finish: Mill finish < Galvanized < Powder Coat < PVDF
• Custom sizing: Standard sizes most cost-effective

Comparison with Other Materials:

vs. Perforated Panels:

• Expanded metal typically 20-40% less expensive
• No material waste vs. 30-70% waste in perforation process
• Faster production reduces manufacturing costs
• Better strength-to-weight ratio

vs. Solid Metal Panels:

• 60-80% material savings due to expanded structure
• Lower shipping costs due to reduced weight
• Reduced structural support requirements
• Natural ventilation reduces HVAC costs

vs. Mesh/Wire Systems:

• Integrated structure eliminates separate framing
• Single-piece installation reduces labor costs
• Better durability than wire mesh systems
• Lower maintenance requirements

Lifecycle Cost Benefits:

• Durability: 25-40 year lifespan with proper material selection
• Low maintenance: Self-cleaning, corrosion-resistant construction
• Energy savings: Natural ventilation reduces operating costs
• Recyclable value: High scrap value at end of service life

Cost Optimization Strategies:

• Choose standard mesh patterns when possible
• Consider galvanized steel for non-corrosive environments
• Plan for standard panel sizes to minimize cutting waste
• Evaluate total project costs including installation and maintenance

Expanded metal panels excel in all weather conditions due to their unique structural properties and material characteristics:

Wind Performance:

• Excellent wind resistance - open structure reduces wind loads by 40-60%
• Pressure equalization prevents panel flutter and stress concentration
• Flexible structure accommodates wind-induced movement
• Lower structural loads on building framework
• Self-stabilizing diamond pattern distributes forces evenly

Rain and Moisture Management:

• Superior drainage - open structure prevents water accumulation
• Self-cleaning action - rain washes debris through openings
• Rapid drying - excellent air circulation prevents moisture retention
• Reduced ice formation - airflow prevents ice buildup
• Corrosion resistance varies by material and coating selection

Temperature Extremes:

Hot Weather Performance:

• Excellent heat dissipation through natural convection
• Reduced thermal expansion stress - flexible structure accommodates movement
• Solar heat gain control - provides shading while maintaining airflow
• No thermal bridging issues common with solid panels

Cold Weather Performance:

• No brittleness - metal construction maintains flexibility
• Thermal shock resistance - gradual temperature transitions
• Snow and ice shedding - open structure prevents accumulation
• Freeze-thaw stability - no water entrapment issues

UV and Solar Exposure:

• UV-stable materials - metals don't degrade under UV exposure
• Coating protection - PVDF and anodized finishes provide long-term UV resistance
• Dimensional stability - minimal UV-induced expansion or contraction
• Color retention - quality finishes maintain appearance

Coastal and Marine Environments:

• Aluminum and stainless steel excel in salt spray conditions
• Enhanced drainage prevents salt accumulation
• Air circulation helps dissipate corrosive vapors
• Galvanic corrosion resistance with proper material selection

Extreme Weather Events:

• Hurricane resistance - flexible structure survives high winds
• Hail impact resistance - expanded structure absorbs impact energy
• Seismic performance - flexible mounting accommodates building movement
• Tornado debris resistance - open structure allows debris passage

Material-Specific Performance:

• Aluminum: Best overall weather resistance, lightweight
• Stainless steel: Maximum corrosion resistance, premium durability
• Galvanized steel: Good performance with proper coating maintenance
• Weathering steel: Develops protective patina, minimal maintenance

Installation Considerations:

• Proper drainage design behind panels essential
• Quality fasteners and mounting systems critical
• Thermal expansion joints for large installations
• Professional installation recommended for optimal performance

Expanded metal panels provide excellent security and safety features while maintaining functionality and aesthetic appeal:

Security Advantages:Visual Deterrent:

• Barrier appearance discourages unauthorized access attempts
• Maintained visibility allows security monitoring and surveillance
• Tamper resistance - difficult to cut or breach without specialized tools
• No loose components that could be used as weapons or projectiles

Access Control:

• Controlled opening sizes prevent passage of people or large objects
• Fine mesh options (6×12mm) restrict small object penetration
• Climbing deterrent - diamond pattern difficult to grip
• Integration capability with electronic security systems

Structural Security:

• High strength-to-weight ratio resists impact and forced entry
• Flexible structure absorbs impact energy without catastrophic failure
• Continuous construction - no weak points or joints
• Vandal resistance - difficult to damage with common tools

Safety Features:

Fire Safety:

• Non-combustible construction - Class A fire rating
• No toxic fume emission during fire exposure
• Maintained ventilation during emergency situations
• Emergency egress - doesn't impede evacuation routes when properly designed

Fall Protection:

• Barrier function prevents accidental falls from elevated areas
• Maintained visibility allows supervision and monitoring
• Impact absorption - flexible structure reduces injury severity
• Code compliance meets safety barrier requirements

EnvironmentalSafety:

• Non-toxic materials - safe for occupied buildings
• No sharp edges when properly finished and installed
• Slip resistance - textured surface provides grip
• Lightning protection - conductive mesh provides Faraday cage effect

Application-Specific Benefits:

Parking Structures:

• Suicide prevention barriers with maintained visibility
• Vehicle containment while allowing ventilation
• Pedestrian protection from vehicle areas
• Crime deterrent through improved visibility

Industrial Facilities:

• Equipment protection from unauthorized access
• Maintained ventilation for safe operation
• Personnel protection from moving machinery
• Containment barriers for hazardous areas

Educational Facilities:

• Perimeter security with maintained supervision capability
• Playground protection from unauthorized access
• Sports facility barriers for spectator and player safety
• Stairwell protection preventing falls and objects dropping

Design Considerations:

• Mesh size selection based on security requirements
• Proper mounting height and extension for effectiveness
• Integration with lighting for nighttime security
• Maintenance access for cleaning and inspection
• Emergency access provisions where required by code

Compliance Standards:

• Building codes for barrier height and strength requirements
• Security standards for detention and high-security facilities
• Safety regulations for industrial and commercial applications
• Accessibility requirements for public buildings
